20491601

$299.00

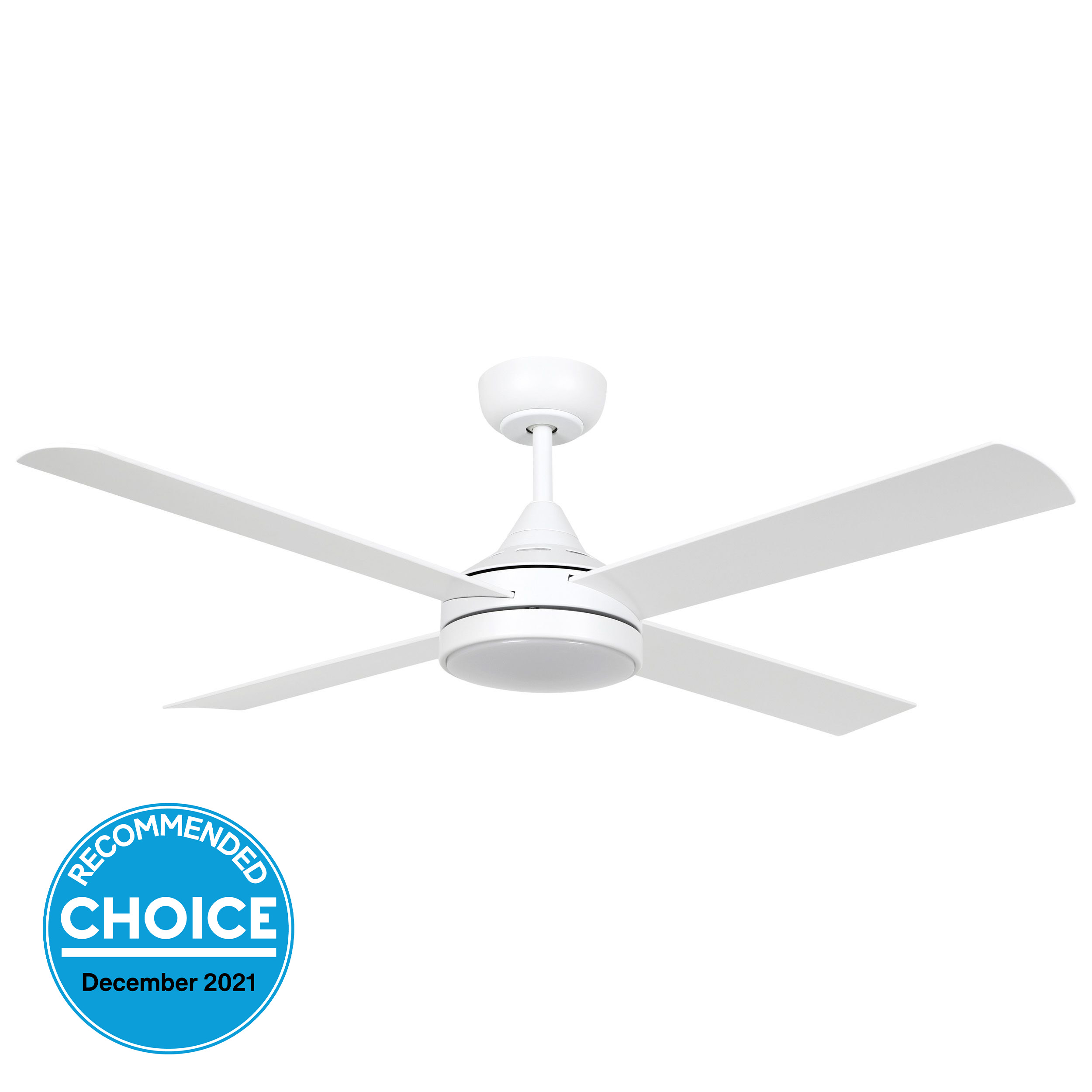

STRADBROKE Ceiling Fan & Light Built-in White 48″
Product details:
Material number: 20491601
Enclosure Material: steel
Enclosure Colour: white matt
Glass/Shade Material: acrylic
Glass/Shade Colour: milky
Illuminant incl. (1): Inclusive
Socket Type (1): LED
Functions: Step Dimming
Warranty: 3+3 years

Description

Dimensions
Article Diameter (in mm) 1220
Article Height (in mm) 318
Canopy Height (in mm) 56
Canopy Diameter (in mm) 142
Net Weight (in kg) 6.1 Kilogram
Gross Weight 7.1 Kilogram
Single-Box Height (in mm) 263
Single-Box Length (in mm) 566
Single-Box Depth (in mm) 251

Fan
Motor Type DC
Motor dimension in MM (Ø x H) 155mm
Motor Wattage 28
Blade pitch in degree 11
Blade Quantity 4
Mains Voltage 220-240V, 50Hz

Material & Colour
Blade Material ABS, UV Resistant
Blade Colour (1) white matt
Canopy Material steel
Canopy Colour white matt
Enclosure Material steel
Enclosure Colour white matt
Glass/Shade Material acrylic
Glass/Shade Colour milky

Performance
Wattage by air movement (1) 1.8
RPM (1) 65
Air Movement m3/Hr (1) 2250
Wattage by air movement (2) 2.9
RPM (2) 110
Air Movement m3/Hr (2) 4350
Wattage by air movement (3) 5.1
RPM (3) 142
Air Movement m3/Hr (3) 5610
Wattage by air movement (4) 8.8
RPM (4) 175
Air Movement m3/Hr (4) 7500
Wattage by air movement (5) 14.8
RPM (5) 210
Air Movement m3/Hr (5) 8470
Wattage by air movement (6) 22.5
RPM (6) 250
Air Movement m3/Hr (6) 10510

Illuminant
Illuminant Type (1) LED
max. Wattage (1) 20W
Lumen Complete 1936
Light colour Complete TRICOLOUR

Remote Controls for AC and DC Ceiling Fans :
As per Wiring Regulation, an Isolator Switch must be installed for each Remote Controlled Ceiling Fans which is to be purchased separately. This does not apply to Wall Switch controlled Ceiling Fans
